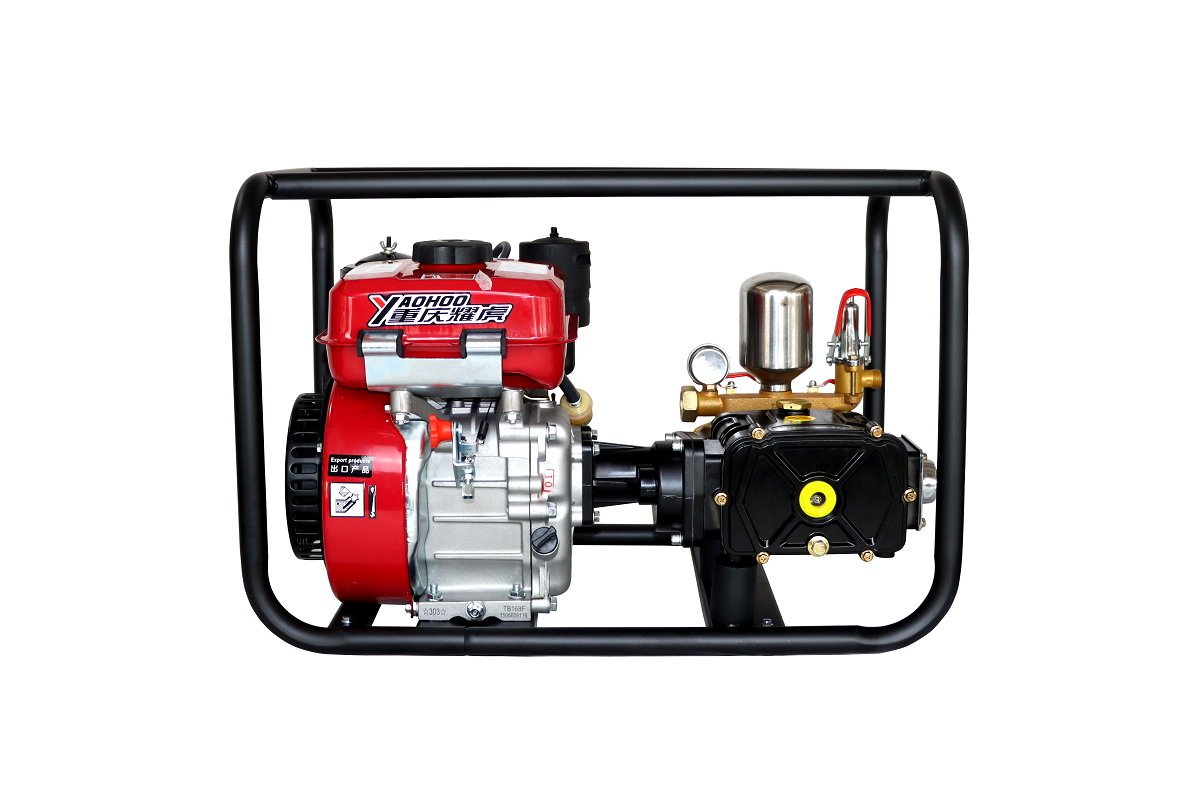

PARAMETERS OF 168FC DIESEL 30 DIRECT CONNECT SPRAY ENGINE
ENGINE | Power type | Single cylinder_ Air-cooled_ Four stroke | SPRAYER | Model | 3WK2.2-Z30A |
Power model | 168F | Pump type | Direct connected crankshaft_ Chrome plating_ No butter_30 | ||
Bore/Stroke(mm) | ?68/54 | Pressure(kgf/c㎡) | 20-35 | ||
Power（kw/hp） | 2.2/3 | Plunger diameter(mm) | 30 | ||
Displacement(cm3) | 196 | Water regains(L/min) | 30 | ||
Speed(rpm) | 3600±100 | Dimensions(mm) | 630X400X460 | ||
Fuel volume（L） | 3.6L | Gross/Net weight(kg) | 34/32.5 |
PRODUCT FEATURES：
168FC diesel 30 direct connected spray engine has a frame structure design, with an overall weight of about 33kg, which is easy to move. The diesel engine has strong power, saves energy, and has a long service life. The spray is directly connected to the crankshaft, and the chrome plated pump body is free of grease and maintenance. It is simple to operate and saves time and labor. The pump body has strong pressure and a three outlet design, allowing multiple people to work together, improving work efficiency.
DISPLAY OF SOME ACCESSORIES：
Butter free chrome plated pump body
Pump inlet and outlet
