168FC diesel 26 direct connection spray engine
View count:92023 / 05 / 09




PARAMETERS OF 168FC DIESEL 26 DIRECT CONNECT SPRAY ENGINE



ENGINE

Power type

Single cylinder_ Air-cooled_ Four stroke



SPRAYER

Model

3WK2.2-Z26A

Power model

168F

Pump type

Direct connected crankshaft_ Chrome plating_ No butter_26

Bore/Stroke(mm)

?68/54

Pressure(kgf/c㎡)

20-35

Power(kw/hp)

2.2/3

Plunger diameter(mm)

22

Displacement(cm3)

196

Water regains(L/min)

26

Speed(rpm)

3600±100

Dimensions(mm)

630X400X460

Fuel volume(L)

3.6L

Gross/Net weight(kg)

33/31.5



PRODUCT FEATURES:


  168FC diesel 26 spray engine has a frame structure design, with an overall weight of about 30kg, which is easy to move. No need to connect wires, it can work anytime and anywhere. The diesel engine has strong power, saves energy and fuel, and can be used for a long time. The spray is directly connected to the crankshaft, chrome plated pump body, free of grease and maintenance, simple in operation, time-saving and labor-saving.



DISPLAY OF SOME ACCESSORIES:

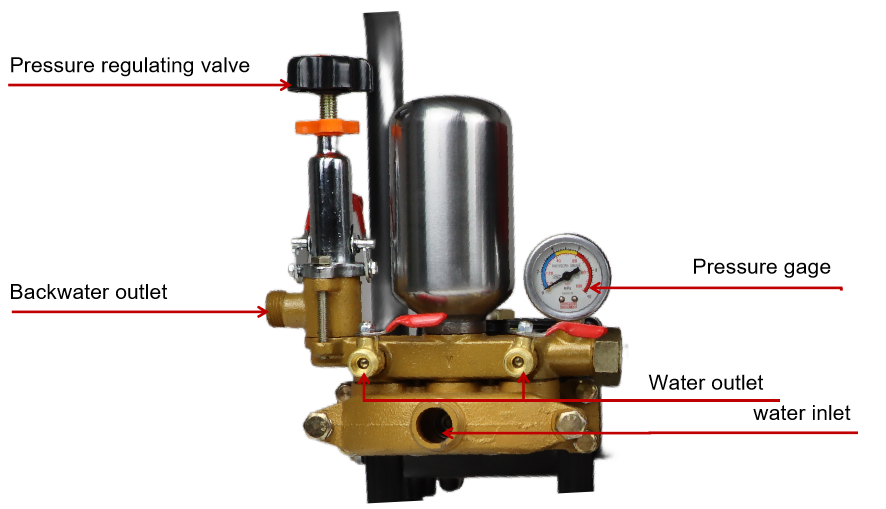

 未標題-1.png未標題-1.png未標題-1.png  Butter free chrome plated pump body






未標題-1.png未標題-1.png未標題-1.png  Pump inlet and outlet
