PARAMETERS OF 168FC DIESEL 25X DIRECT CONNECTION SPRAY ENGINE
ENGINE | Power type | Single cylinder_ Air-cooled_ Four stroke | SPRAYER | Model | 3WK2.2-Z25X |
Power model | 168F | Pump type | Direct connected crankshaft_ Chrome plating_ No butter_25 | ||
Bore/Stroke(mm) | ?68/54 | Pressure(kgf/c㎡) | 20-35 | ||
Power（kw/hp） | 2.2/3 | Plunger diameter(mm) | 25 | ||
Displacement(cm3) | 196 | Water regains(L/min) | 24 | ||
Speed(rpm) | 3600±100 | Dimensions(mm) | 630X400X460 | ||
Fuel volume（L） | 3.6L | Gross/Net weight(kg) | 33/31.5 |
PRODUCT FEATURES：

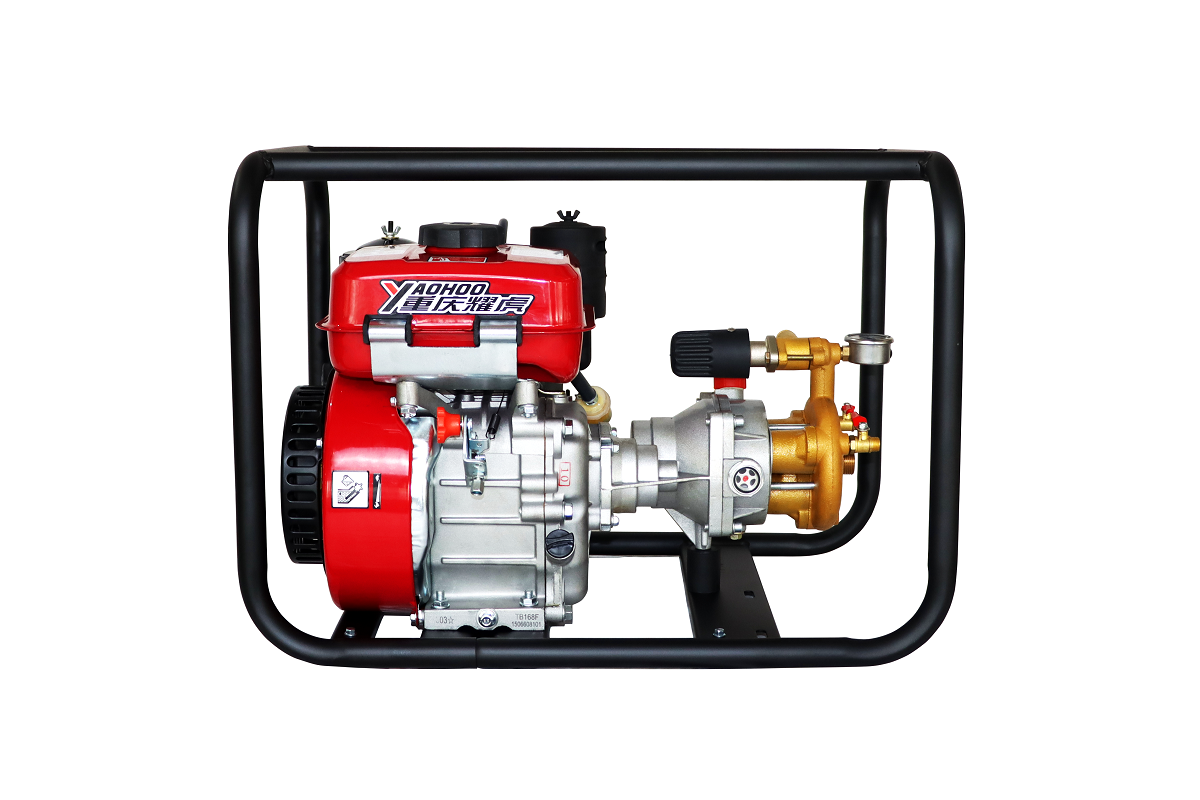

168FC diesel 25X direct connected spray engine has a frame structure design, with an overall weight of about 30kg, which is easy to move. The diesel engine has strong power, saves energy and fuel, and has a long service life. The spray is directly connected to the crankshaft, chrome plated pump body, free of grease and maintenance, simple in operation, time-saving and labor-saving.
The 25X directly connected spray heats the liquid medicine when it is working. This spray can be used when special drugs need to be heated.
DISPLAY OF SOME ACCESSORIES：

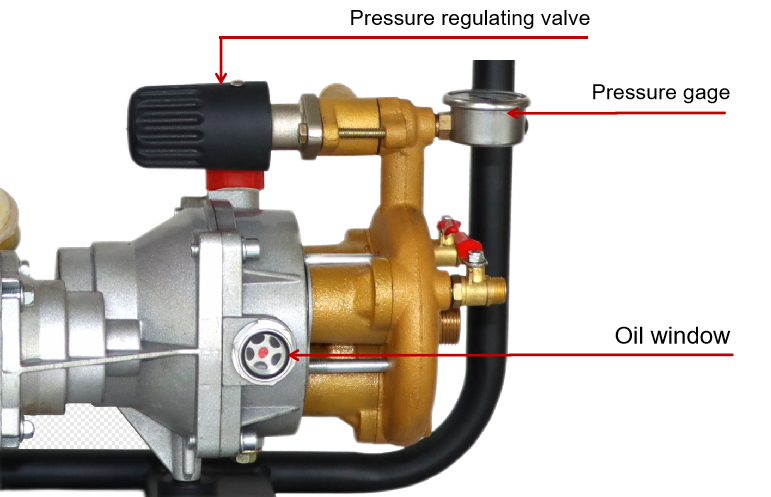

Butter free chrome plated pump body

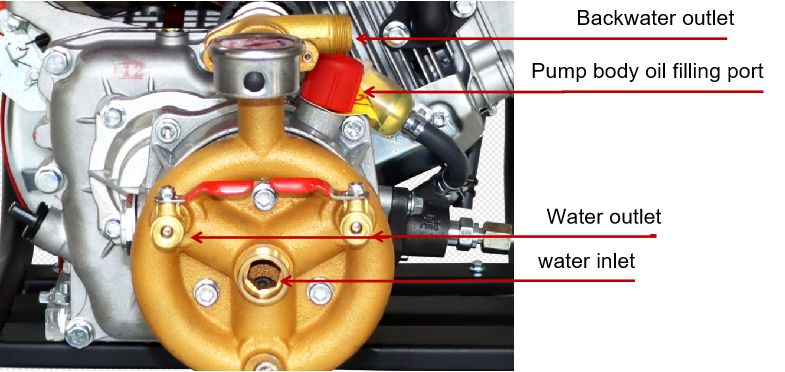

Pump inlet and outlet
