PARAMETERS OF 173FC DIESEL 30 DIRECT CONNECT SPRAY ENGINE
ENGINE | Power type | Single cylinder_ Air-cooled_ Four stroke | SPRAYER | Model | 3WK4.0-Z30AC |
Power model | 173FC | Pump type | Direct connected crankshaft_ Chrome plating_ No butter_30 | ||
start mode | Manual start/electric start | Pressure((kgf/c㎡) | 20-35 | ||
Bore/Stroke(mm) | ?73/59 | Plunger diameter(mm) | 30 | ||
Power（kw/hp） | 4.0/7 | Water regains(L/min) | 30 | ||
Displacement(cm3) | 247 | Dimensions(mm) | 665X485X600 | ||
Speed(rpm) | 3600±100 | Gross/Net weight(kg) | 52.9/50.2 | ||
Fuel volume（L） | 2.5L |
Product features:

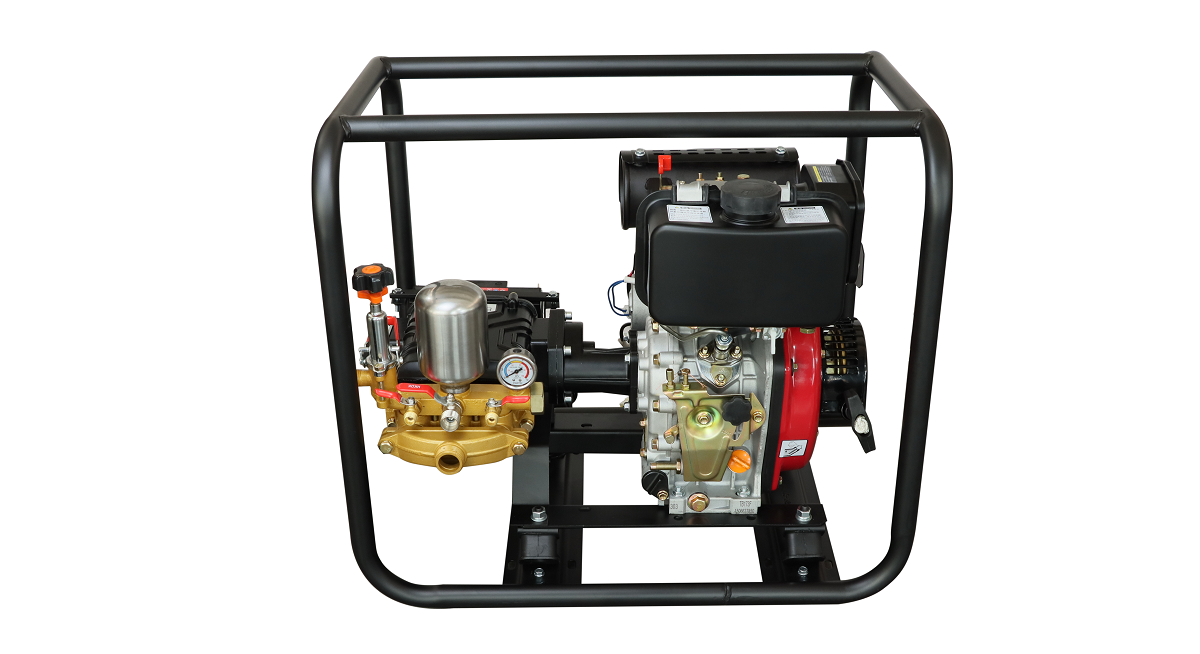

Diesel 173FC direct connection spray engine frame structure design, manual/electric two ways to start, easy and fast start.
The diesel engine has strong power, saves energy and fuel, and can be used for a long time. The spray is directly connected to the crankshaft, chrome plated pump body, free of grease and maintenance, simple in operation, time-saving and labor-saving.
